Scale bar: Double click it to modify its orientation and
length.

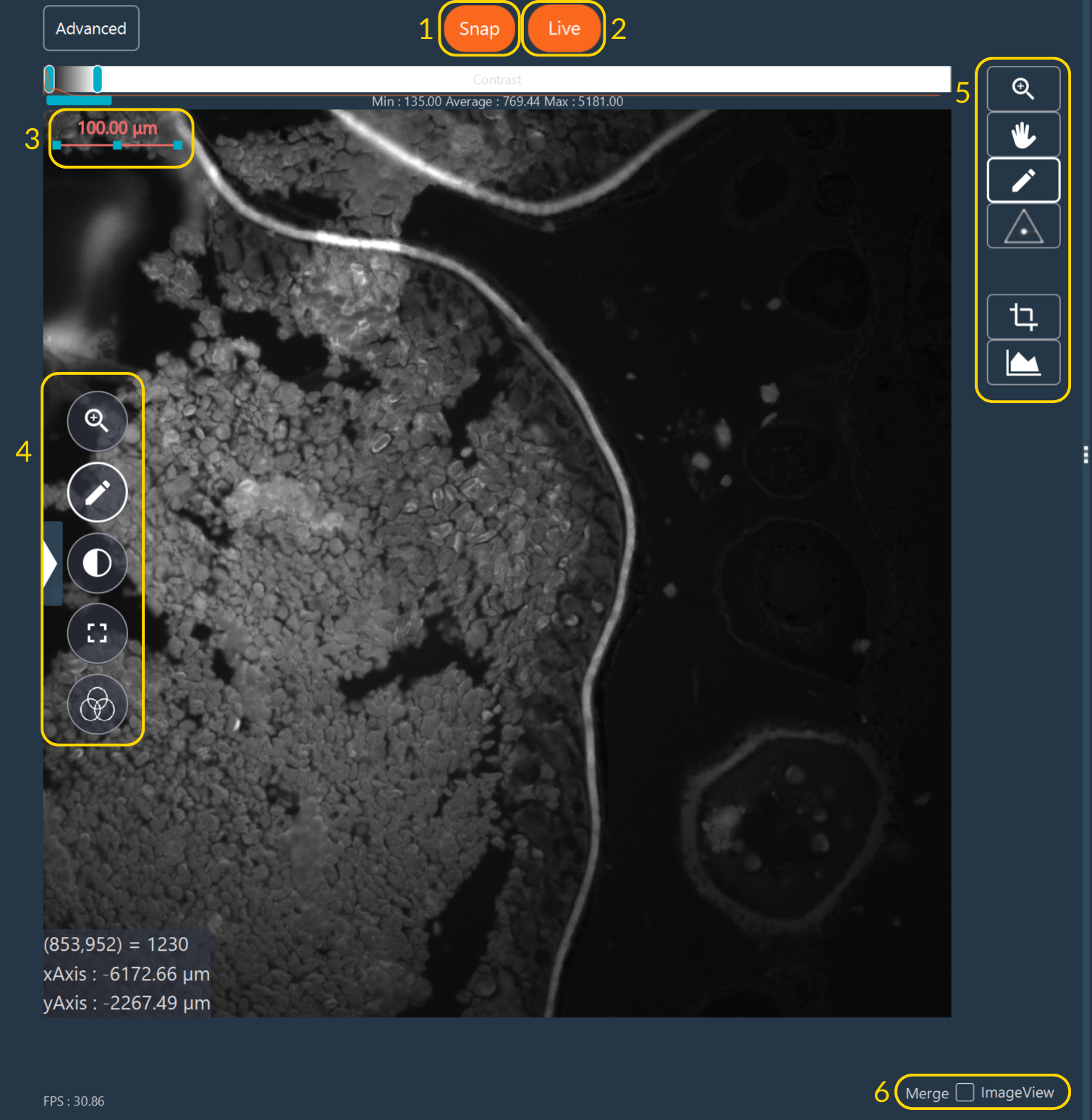

Tools to interact with the image:
Numerical zoom.
You can select this option to add ROI.
You can choose this option to set the contrast
automatically or manually. If it is manually, adjust the
blue sliders on top of the camera view.
Press this button to switch to full screen mode. To close
this mode, press this button again or click on the cross in
the top-right corner.
You can change the LookUp Table (LUT) in real time using
this option. You have 3 options:
- no LUT;
- LUT
with one color;
- Preset LUT.
Note:
Some LUT are presetted like:
Pixel indicator showing in red the overloaded
pixels
Inscoper ratiometric dedicated to ratiometric
images visualization
Conventional multicolor LUT as “fire”, “physics”, etc.
Access tool to more advanced tools:
Numerical zoom: Turn the mouse wheel over the
image.
Move the stage by a drag and drop directly on the
image, and use the mouse wheel to navigate along the
Z-axis.
ROI access.
To create a ROI on the image, you can choose between two modes:
The pen mode allows you to add one or
multiple ROI.
The scissors mode allows you to cut
(remove) into a full shape while retaining the
surrounding selected area.
Then, use the shape tools to draw desired shapes:
Draw a straight line.
Draw a freehand line.
Draw the edge of a rectangle.
Draw a filled rectangle.
Draw the edge of a circle.
Draw a filled circle.
Draw a free form edge.
Draw a filled free form.
Fire on Click function available only if the FRAP
module is installed.

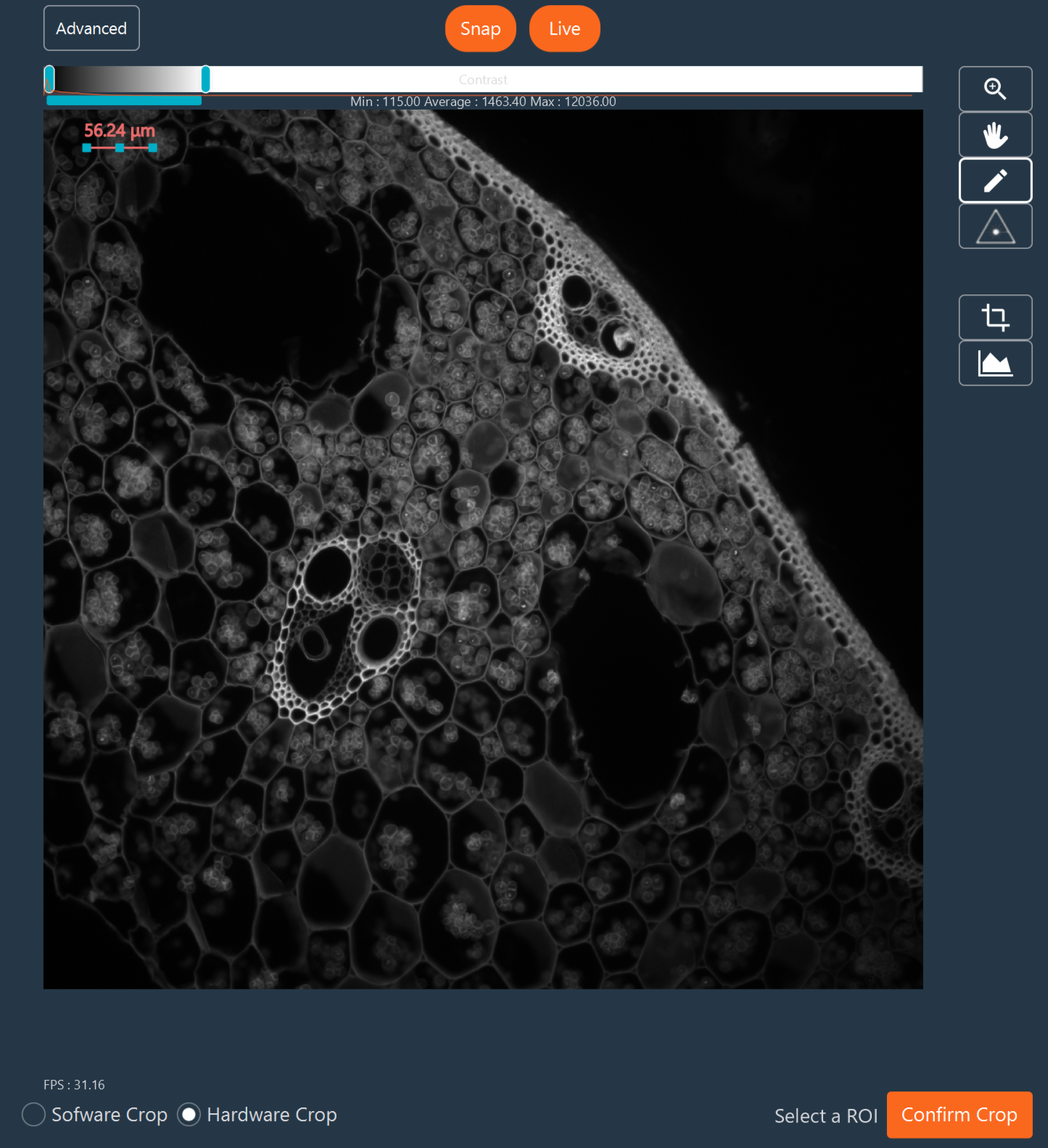

Crop access. Can be set as either hardware or
software crop. Draw an ROI, select
Hardware or
Software crop mode, then
click Confirm Crop to apply.

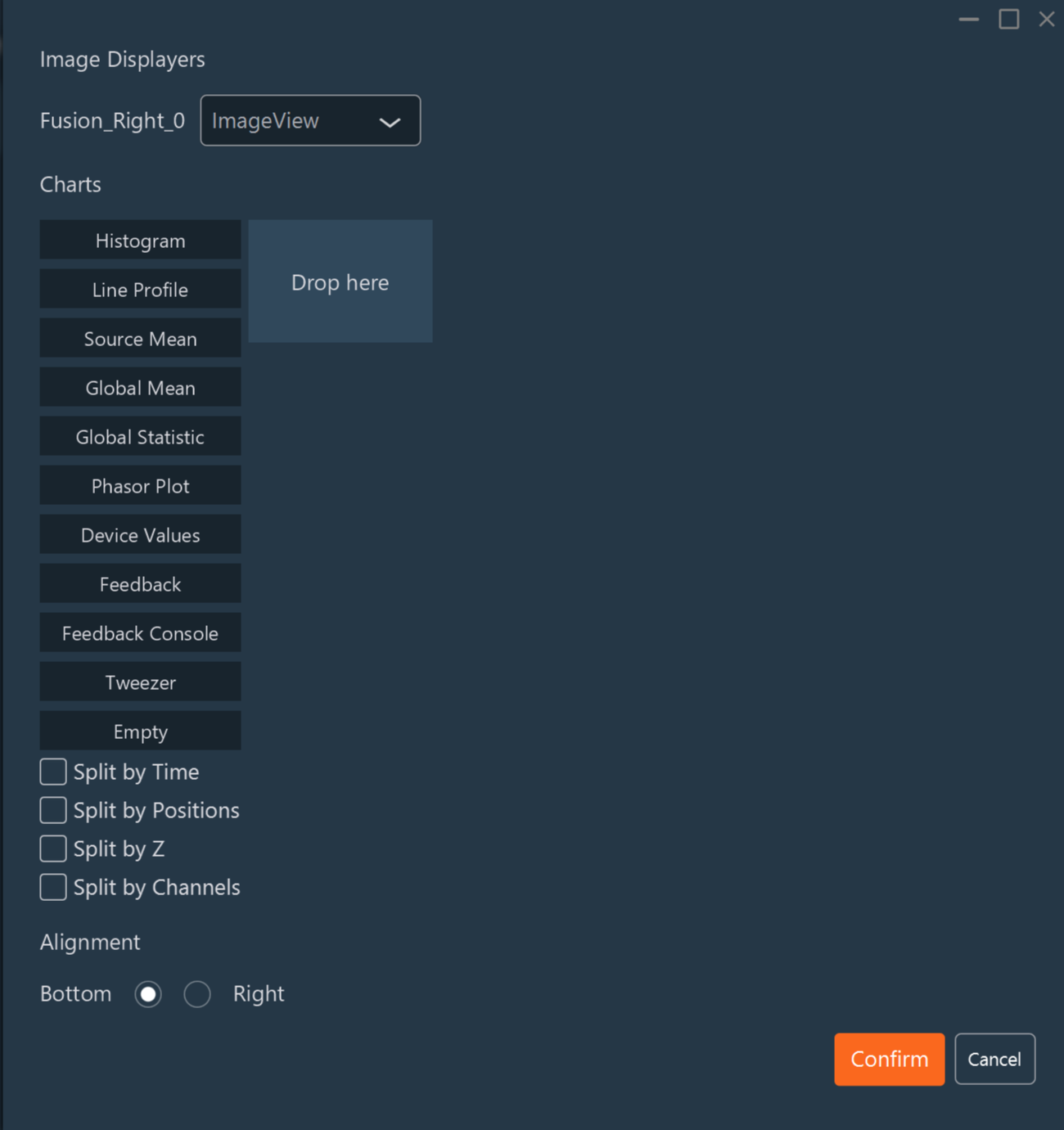

Histogram access. Display of the histogram or other
visualizations below or to the right of the
image. Once it’s confirmed, you can adjust the X
axis according to the camera depth by placing your mouse
at the top of the histogram.
When you make a right click on a ROI, you have access to a new window
dedicated to the manipulation of all these areas. You can fill some areas,
duplicate and/or edit ROI. By editing the ROI, you can manually give
dimensions of this form and center it in the camera field of view. You can
also remove one or all of them.
Merged images: If you have more than one camera, you can
merge the images from all the cameras in Live.

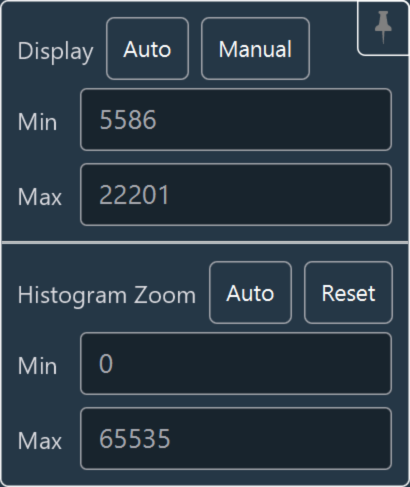

The contrast adjustment tools can be accessed by hovering the mouse over the contrast
bar at the top of the image. You can modify the minimum and maximum contrast values
and zoom in on the histogram by adjusting these values.
To create a ROI on the image, you can choose between two modes:
