Time Gated Domain FLIM (fastFLIM)¶

fastFLIM is a hardware and software solution designed to measure mean fluorescence lifetime using a widefield, camera-based microscope architecture. fastFLIM measurements integrate seamlessly with other imaging dimensions, including Multi-positions, Tiling mosaics, Multi-channel overlays, and Z-stacks.

Unlike traditional point-scanning FLIM (e.g., TCSPC), which is typically slow, fastFLIM is a camera-based FLIM technique that employs a time-domain approach combined with a time-gated image intensifier. This captures the lifetime of the entire field of view simultaneously (or rapidly via spinning disk), providing significantly higher acquisition speeds and minimal phototoxicity. This makes it highly effective for observing rapid biological dynamics and biosensors in living cells.

Hardware Configuration¶

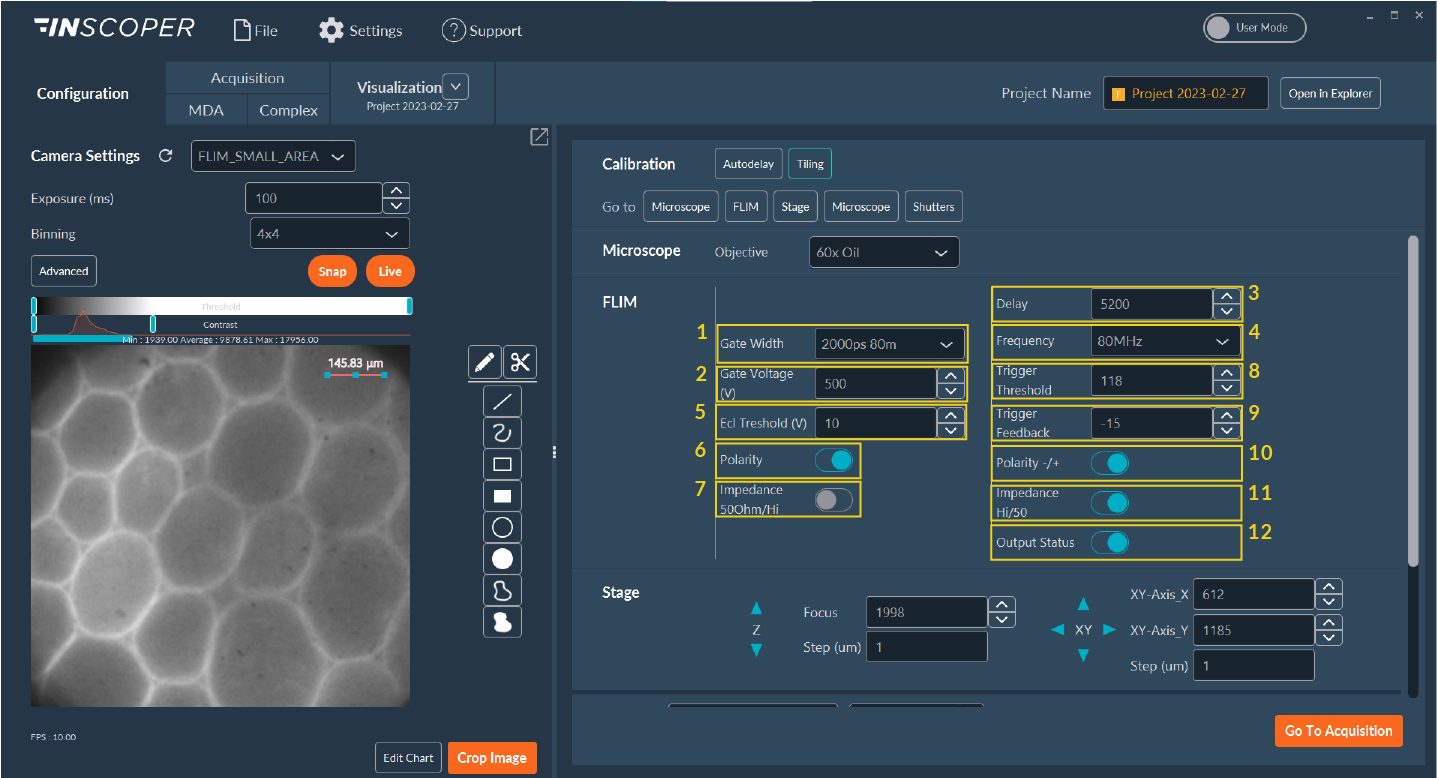

The Configuration tab provides direct access to the critical FLIM timing and gating parameters:

1. Gate Width: Specifies the absolute duration of the temporal detection window (gate).
2. Gate Voltage: Sets the multi-channel Plate (MCP) potential voltage, which directly controls the internal signal amplification (gain) of the intensifier.
3. Delay: The precise temporal offset (in picoseconds) applied relative to the pulsed laser synchronization signal.
4. Frequency: The operational repetition rate of the central delay generator.
5. ECL Threshold: Sets the electrical noise floor threshold for the input synchronization signal routed to the intensifier.
6. Polarity: Configures the detector logic to correctly identify the leading or trailing edge of the delay generator's synchronization pulse.
7. Impedance: Adjusts electrical impedance matching to ensure artifact-free signal detection.
8. Trigger Threshold: Sets the electrical noise floor threshold for the input synchronization signal routed to the delay generator.
9. Trigger Feedback: (Specific to legacy delay generator models). Displays a diagnostic value verifying lock synchronization between the delay generator and the pulsed laser. Optimal operational values hover near 0, safely within a [-100, +100] operational range.
10. Polarity (-/+): Configures the delay generator logic to correctly detect the laser's physical synchronization pulse.
11. Impedance (Hi/50Ω): Adjusts electrical impedance matching specifically for the laser synchronization line.
12. Output Status: Manual override for the optical shutter control.

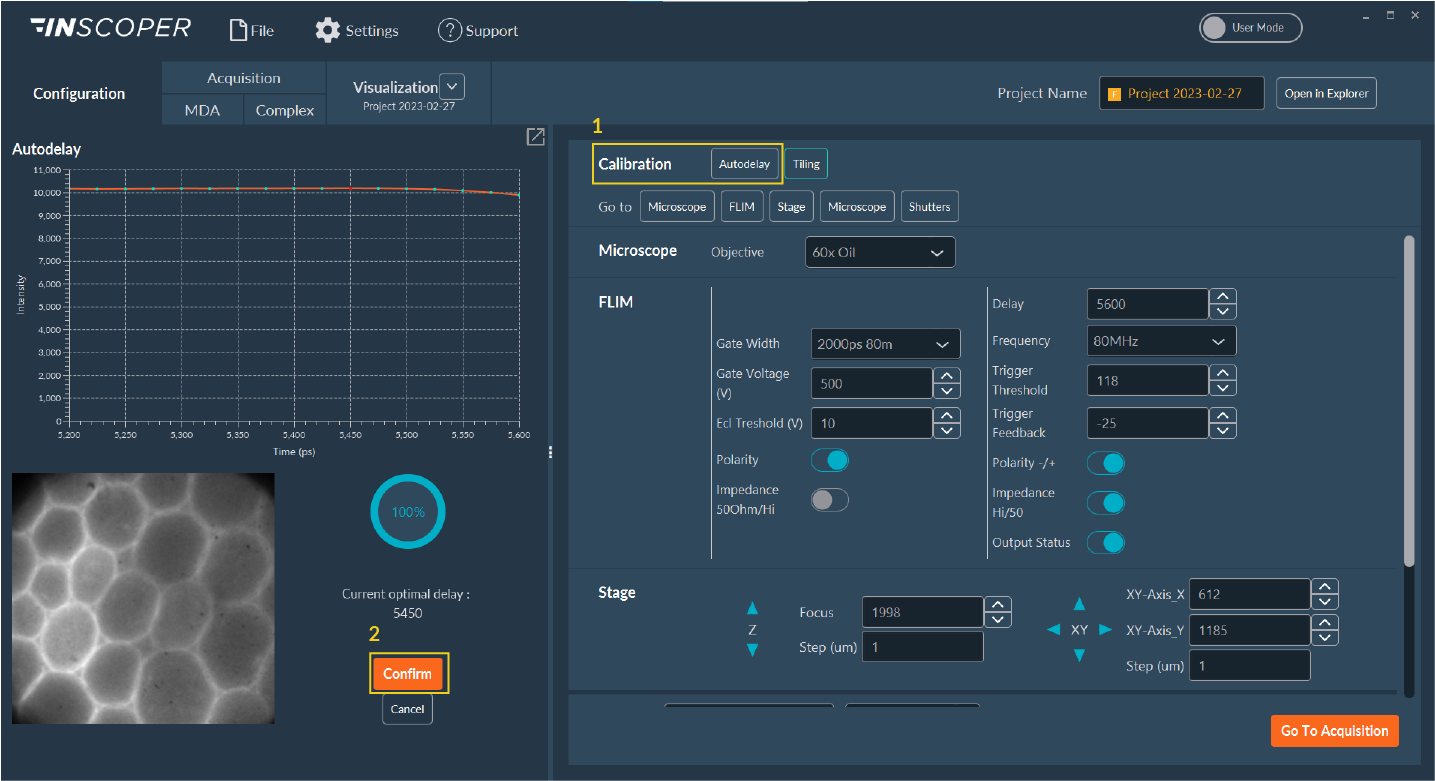

Autodelay Pulse Calibration¶

1. Click Autodelay to launch the automated hardware calibration protocol.
2. Wait for the software algorithm to calculate the optimal temporal offset. Once displayed, click Confirm. This calibrated picosecond value will automatically populate the master Delay field in the Configuration tab.

Sequence Acquisition¶

With the hardware configured and calibrated, proceed to the Acquisition tab to build the imaging sequence.

Configure your imaging channels natively using the Multi-channel dimension, ensuring you explicitly define both your standard widefield fluorescence channels and your dedicated FLIM measurement channels.

Within the dedicated FLIM dimension panel, the interface behavior adapts computationally based on the number of active FLIM channels designated:

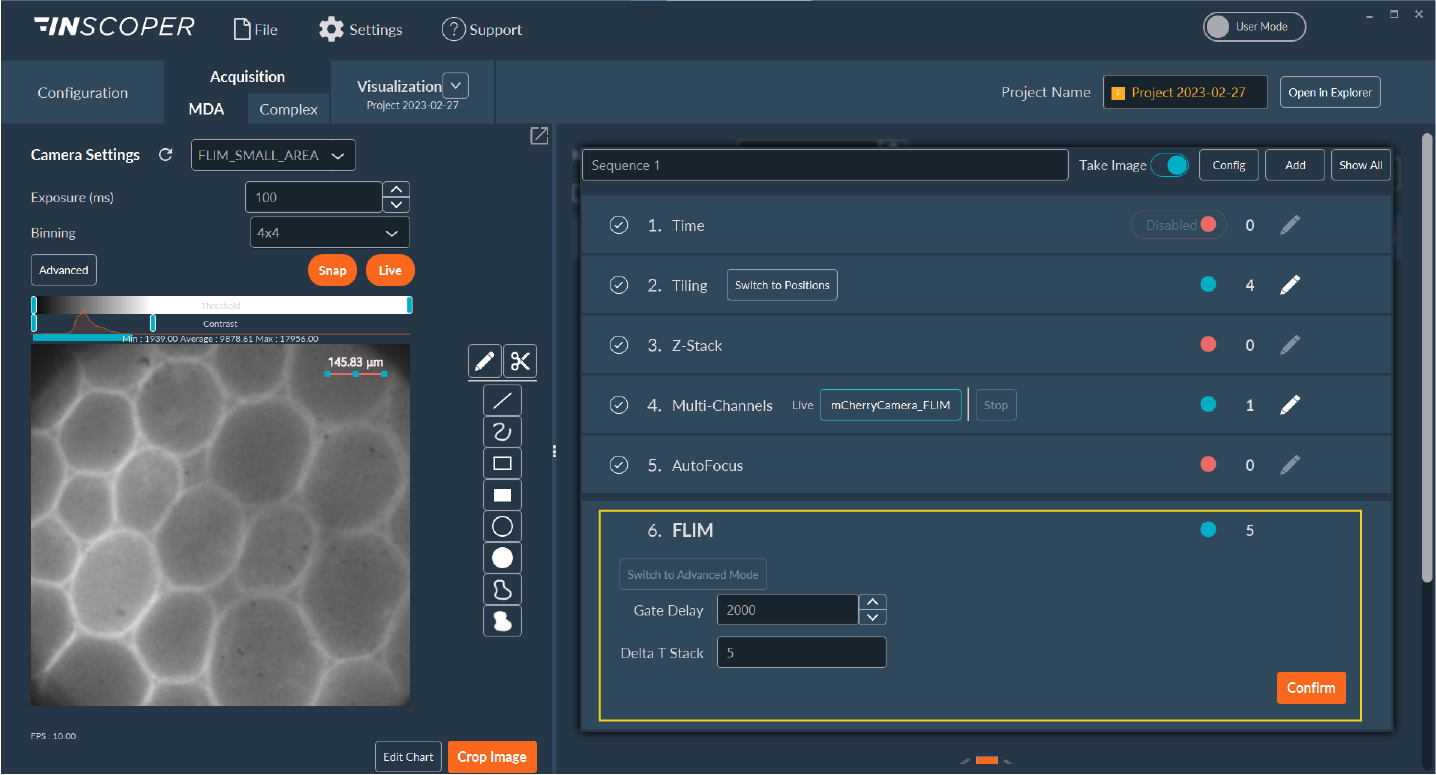

Simple Mode¶

This mode activates automatically when only a single FLIM channel is present in the sequence.

• Gate Delay: Defines the incremental temporal shift (interval) between successive measurement gates across the decay curve.
• Delta T stack: Defines the total number of sequential temporal images (discrete time points) to acquire for the complete FLIM measurement curve.

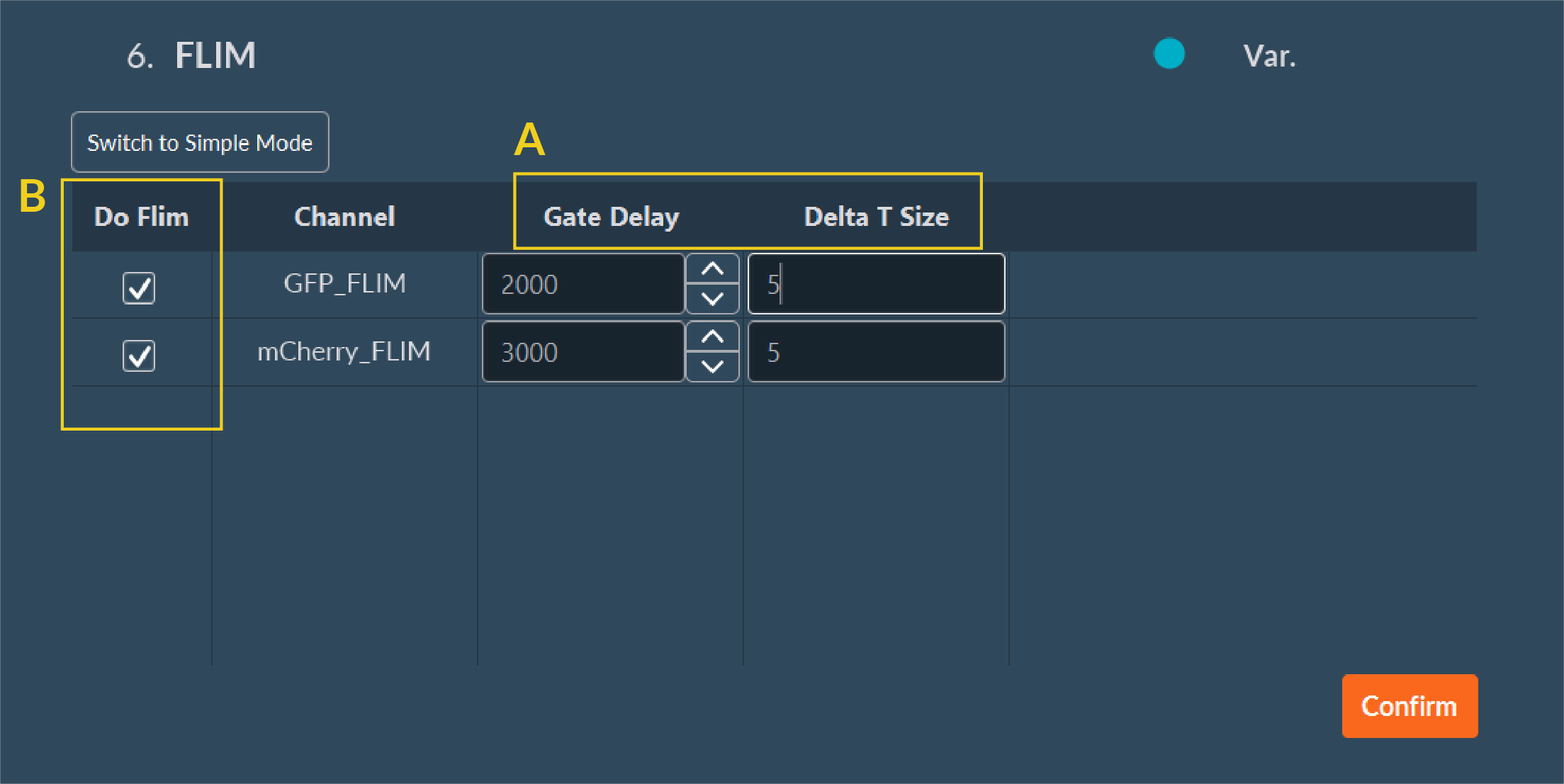

Advanced Mode¶

This mode activates automatically when multiple FLIM channels are configured in the sequence, granting granular control over complex multi-channel lifetime measurements.

• A: Define unique, independent Gate Delay and Delta T Size parameters tailored computationally for each specific channel.
• B: Toggle active FLIM measurement execution on or off for individual channels by utilizing the Do Flim checkboxes.

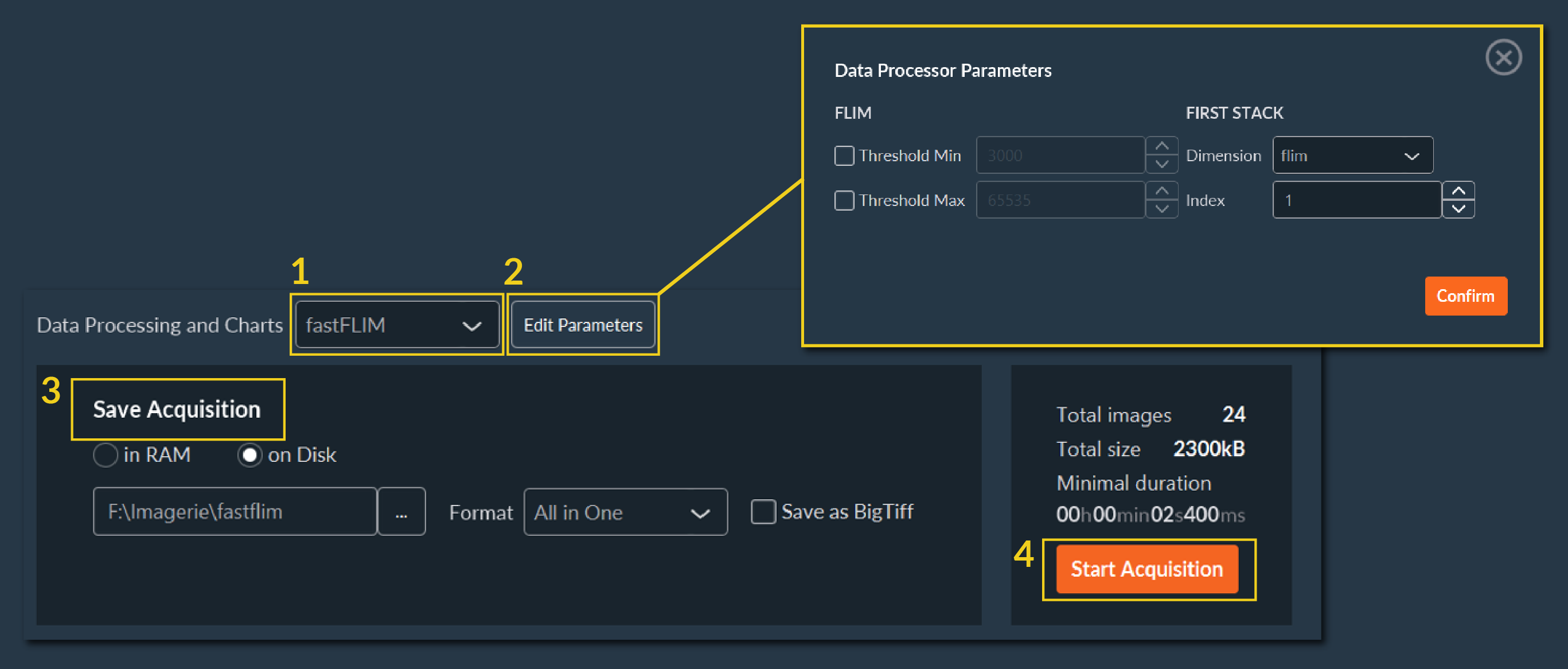

Finalizing Acquisition¶

Once your temporal FLIM parameters are locked, click Confirm on the dimension module. To finalize the data routing workflow:

1. Navigate to the Save menu. Select fastFLIM from the Data Processing and Charts computation drop-down menu.
2. Click Edit Parameters to define the absolute minimum and maximum Intensity Thresholds (photon counts) required for valid pixel-wise FLIM calculation. Click Confirm. (Pixels below this threshold are excluded from the decay fit).
3. Specify your absolute destination save folder path.
4. Click Start Acquisition to initiate the sequence.

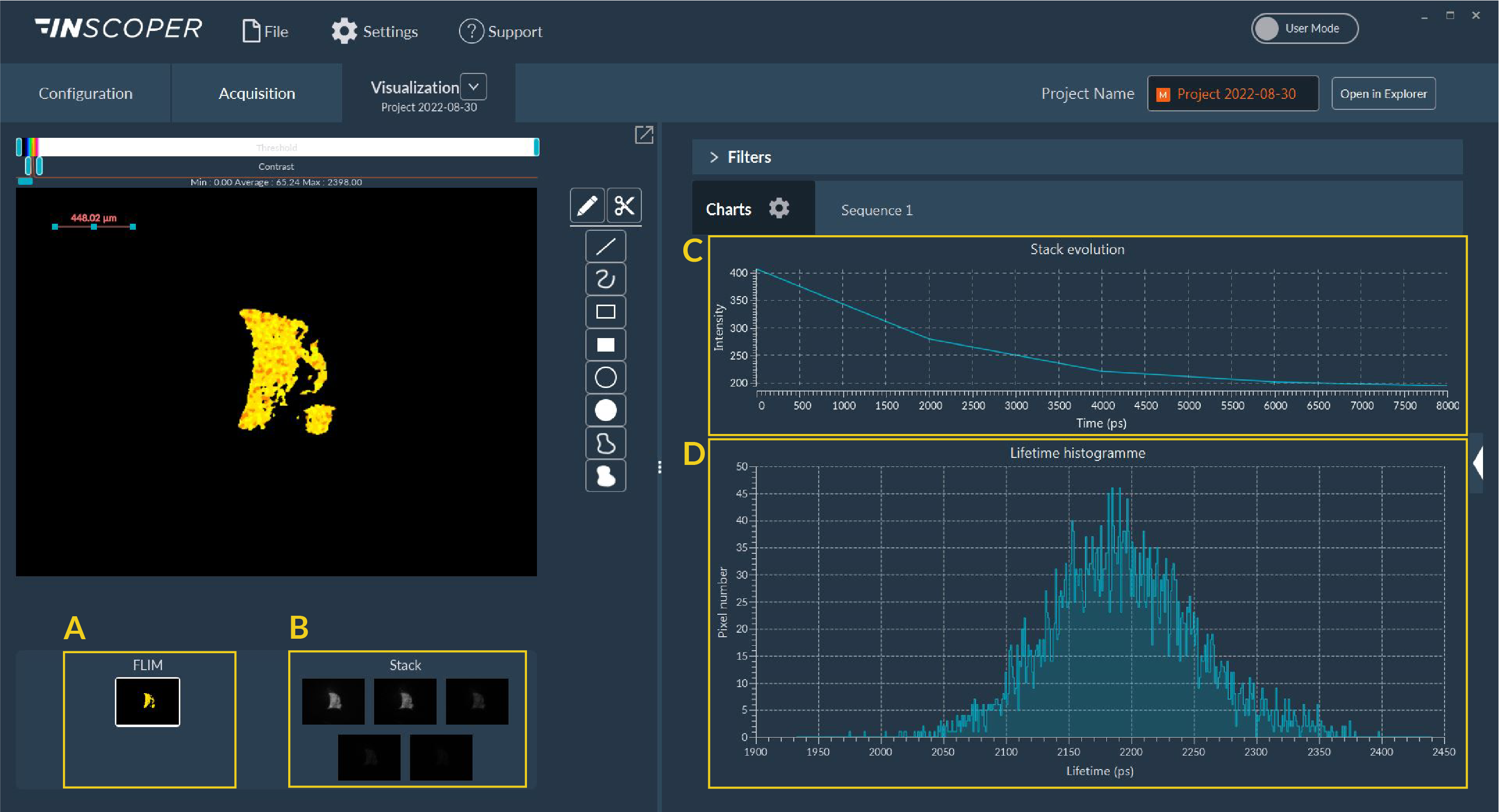

Data Visualization¶

The Visualization tab provides FLIM analytical results computed at the end of the acquisition. It displays calculated FLIM maps alongside raw sensor intensity, integrated lifetime distributions, and point-wise intensity decay curves.

• A: The pseudo-colored, computed FLIM image map.
• B: The raw, time-gated intensity images utilized for the decay calculation.
• C: The plotted intensity decay curve for the selected pixel or ROI.
• D: The global pixel lifetime distribution histogram.

All generated multi-dimensional images and statistical charts are saved automatically to your specified destination folder upon compute completion.
