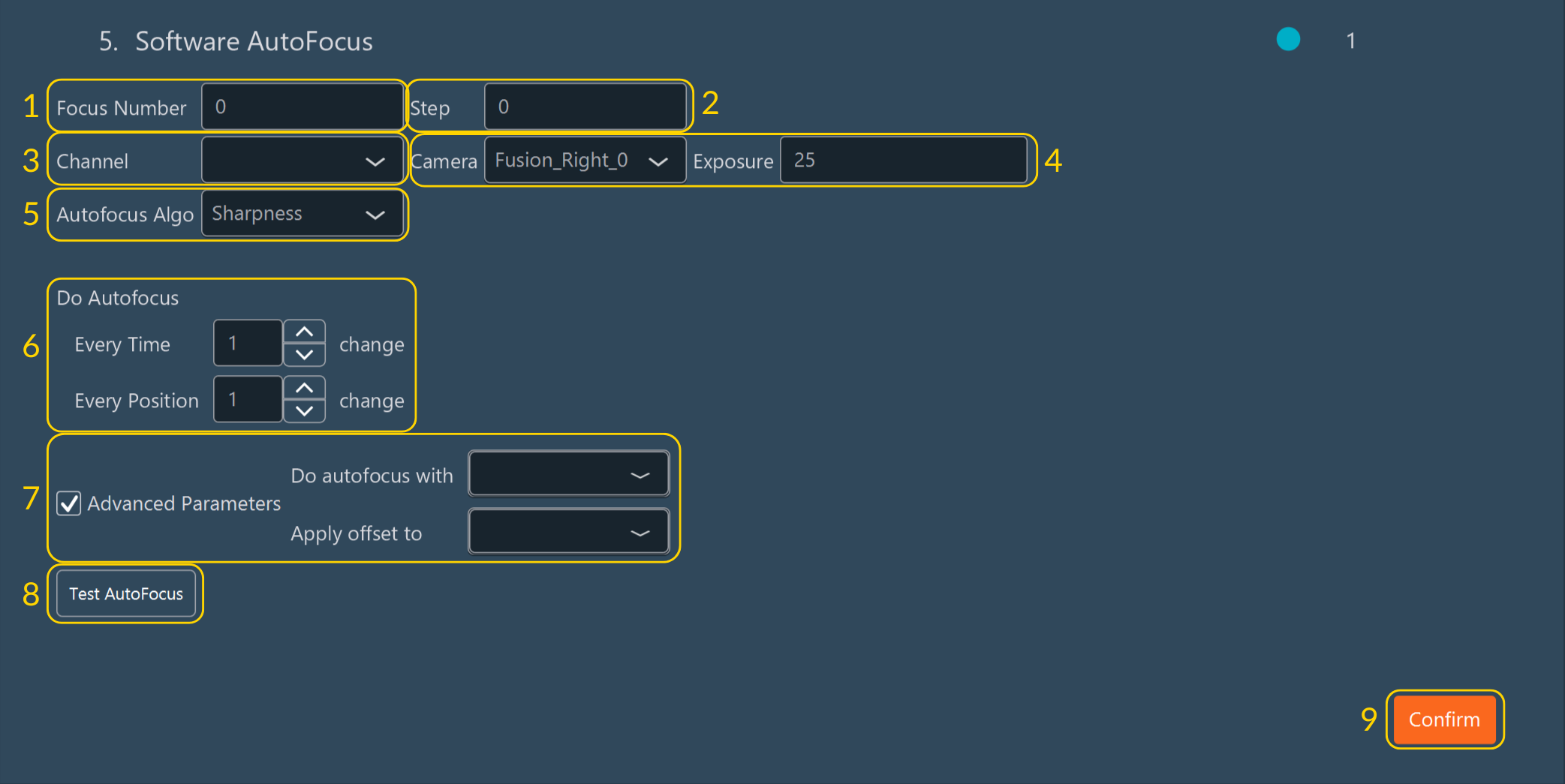

Software autofocus

The Inscoper I.S. has a software autofocus mode to keep samples at the focus throughout the acquisition sequence.

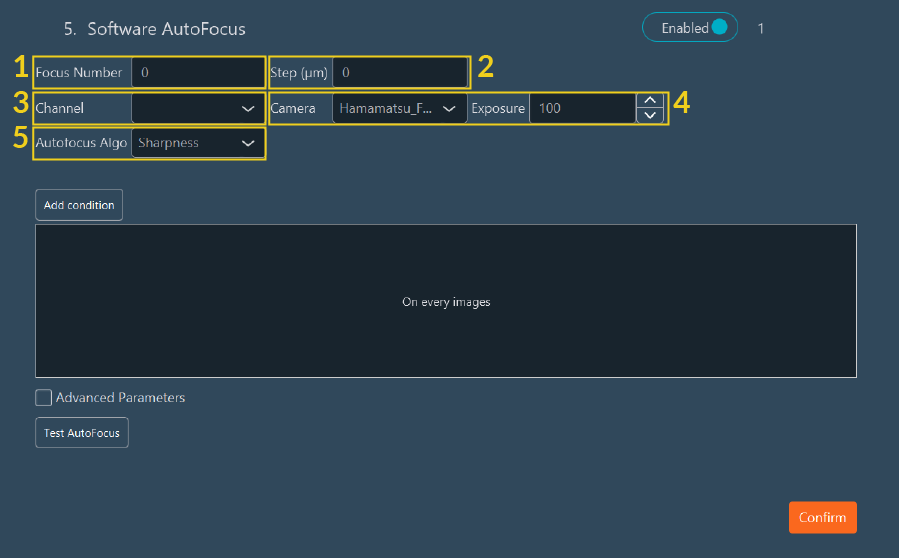

Select the number of focus to perform to each position.
Select the step (µm) between each focus.
Select the channel to use.
Select the camera to use and its exposure time.
Select the autofocus algorithms to be applied: maximal intesity or sharpness (the best focus plane will be the sharpest).

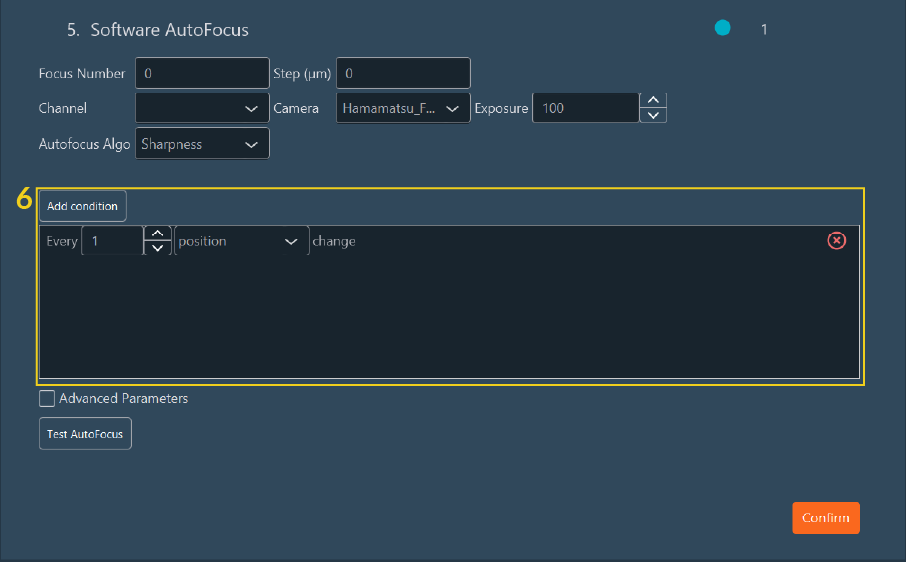

Add Condition: interval of autofocus depending on dimension (for example, every 3 time points).

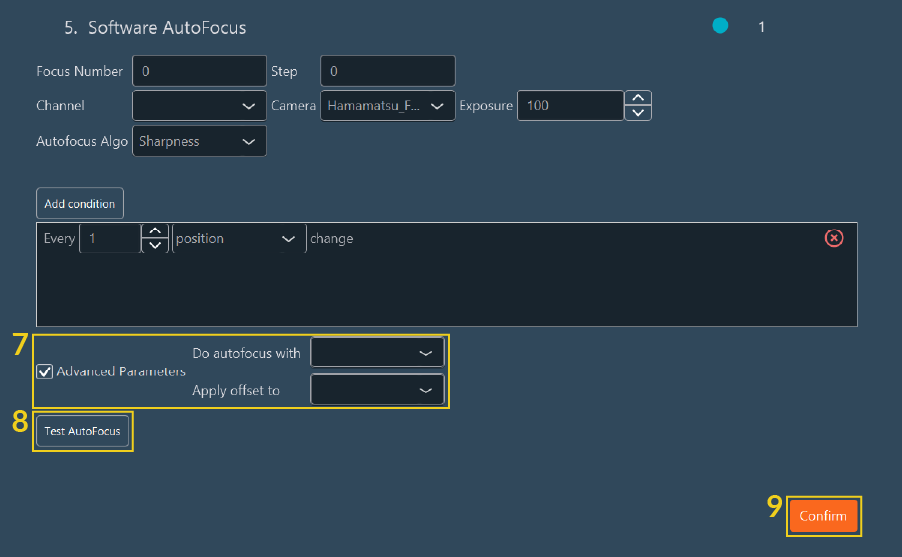

Check Advanced Parameters to set up the device to do the autofocus (for example, the piezo or the focus of the microscope) and if you need to apply offset to another device.
Test the autofocus protocol.
Click on Confirm.

Important: The Autofocus dimension must be executed after the active dimension during an acquisition sequence.
