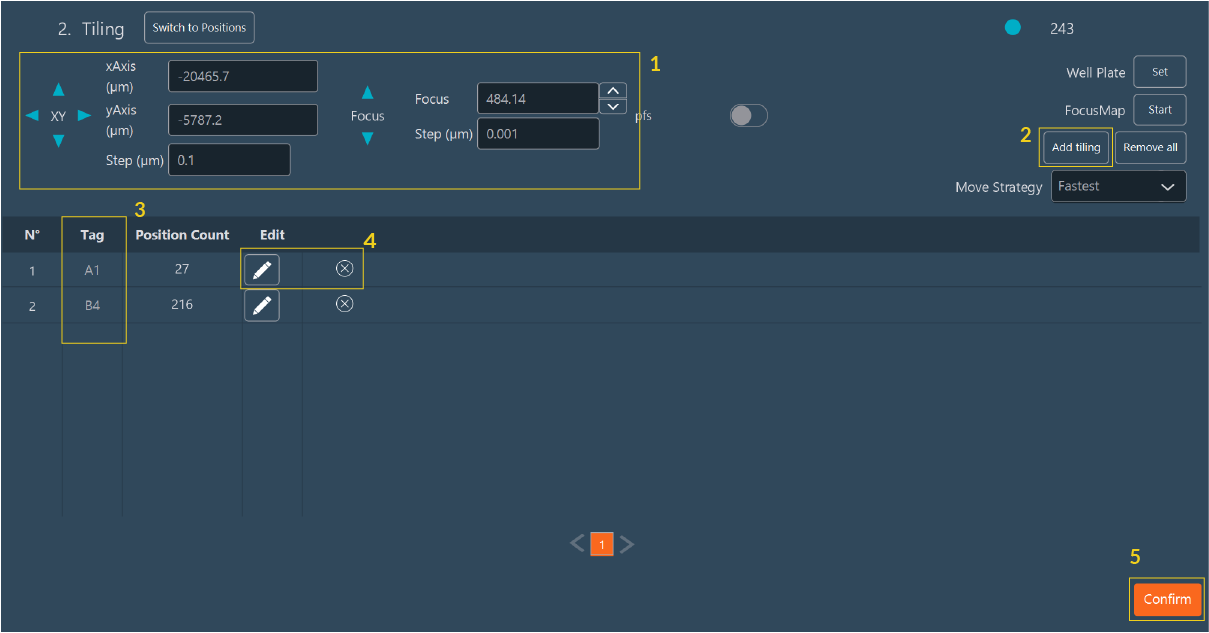

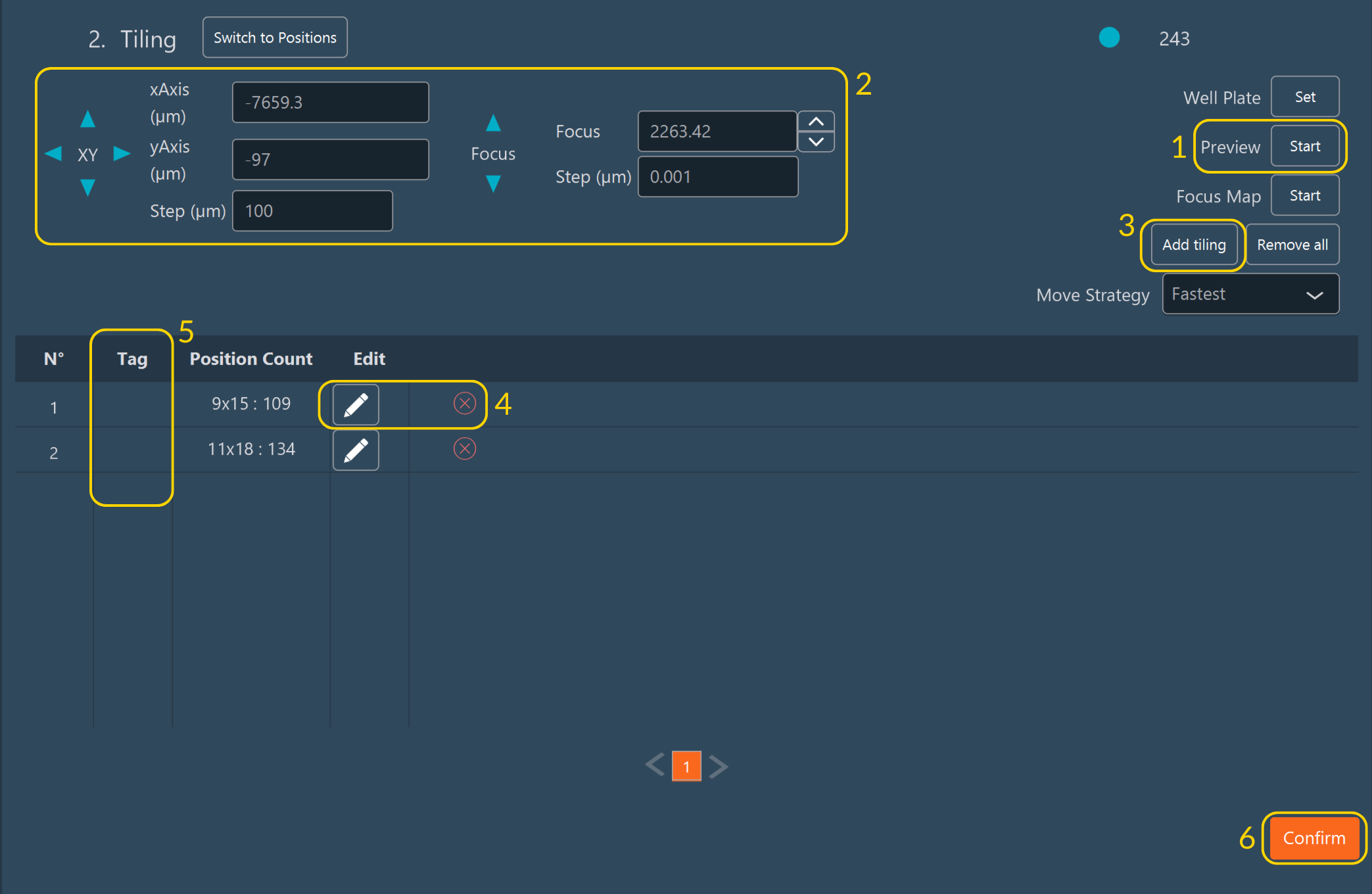

Tiling creation

The tiling tool is used to image large samples. You can switch from this dimension to the Positions dimension by the top button Switch to Positions.

1. Move the stage and adjust the focus to the desired position.
2. Click on Add position to add a tiling in the tiling list.
3. You can name each tiling in the Tag column by simply clicking on the Tag field.
4. To edit/customize a tiling clicking the Pen icon (see the Tiling editition) or click the White Cross to delete it from the list.
5. Once all tilings are configured, click Confirm to finalize.
