Time

Use the Time dimension to configure time-lapse acquisitions to observe dynamic biological processes.

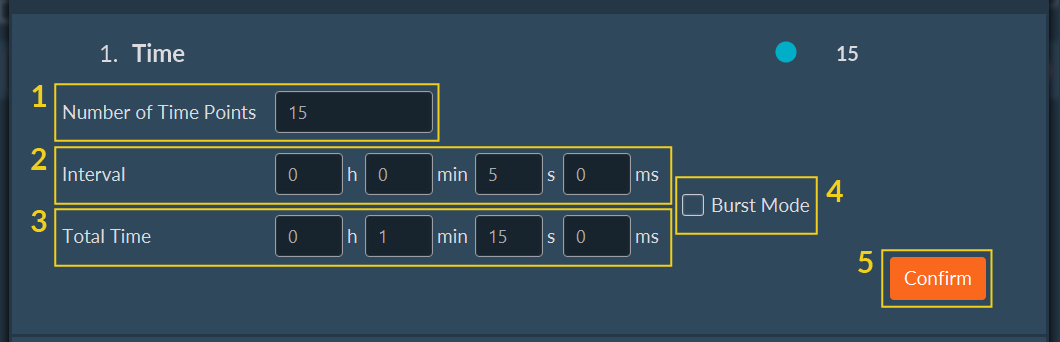

Time-Dimension

Configuring a time-lapse

  1. Specify the total number of time points (frames) required in the acquisition.
  2. Define the interval duration between consecutive time points (minimum time to wait between frames).

Note

The software adapts the Total Time automatically. You may also set the total time manually and infer the interval duration for a fixed number of time points.

  1. Enable Burst Mode to acquire images continuously at the maximum hardware frame rate, ignoring the specified interval. Use this to capture rapid kinetics.
  2. Click Confirm to save the time dimension settings.
